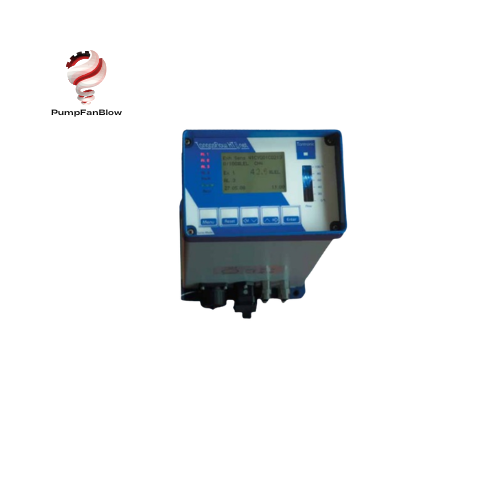

20-12-35000-A TANTRONIC VIETNAM

GIỚI THIỆU VỀ SẢN PHẨM VÀ HÃNG

20-12-35000-A TANTRONIC VIETNAM là thiết bị giám sát và phân tích khí công nghiệp của Tantronic, được thiết kế nhằm phát hiện và kiểm soát nồng độ khí trong các hệ thống sản xuất. Sản phẩm đóng vai trò quan trọng trong việc đảm bảo an toàn vận hành và duy trì chất lượng môi trường làm việc. Với khả năng đo chính xác và phản hồi nhanh, thiết bị phù hợp cho nhiều ứng dụng trong ngành tự động hóa.

ĐẶC ĐIỂM CỦA SẢN PHẨM 20-12-35000-A

• Đo nồng độ khí với độ chính xác cao
• Phản hồi nhanh, cảnh báo kịp thời
• Tín hiệu đầu ra ổn định, dễ tích hợp
• Thiết kế công nghiệp, độ bền cao
• Hoạt động ổn định trong môi trường khắc nghiệt
• Giao diện dễ sử dụng, vận hành đơn giản
• Hỗ trợ nhiều chuẩn kết nối
• Bảo trì dễ dàng, tuổi thọ dài

THÔNG SỐ KỸ THUẬT SẢN PHẨM 20-12-35000-A TANTRONIC VIETNAM

Thông số	Giá trị tham khảo
Model	20-12-35000-A
Loại thiết bị	Thiết bị đo và giám sát khí
Dải đo	0 – 100%
Nguồn cấp	24 VDC
Tín hiệu đầu ra	4–20 mA / Digital
Giao tiếp	RS232 / Ethernet
Nhiệt độ hoạt động	-20°C đến +50°C
Phương pháp đo	Cảm biến khí
Cấp bảo vệ	IP công nghiệp

ỨNG DỤNG TANTRONIC VIETNAM

• Giám sát khí trong nhà máy công nghiệp
• Ứng dụng trong ngành dầu khí
• Kiểm soát môi trường sản xuất
• Hệ thống an toàn phòng cháy nổ
• Tích hợp trong hệ thống tự động hóa

KẾT LUẬN

20-12-35000-A là giải pháp giám sát khí hiệu quả, giúp nâng cao độ an toàn và ổn định cho hệ thống công nghiệp. Với thiết kế bền bỉ, khả năng đo chính xác và vận hành linh hoạt, sản phẩm đáp ứng tốt các yêu cầu kiểm soát môi trường trong nhiều lĩnh vực sản xuất hiện đại.



1trong 2 option

 jprob 1.1 100% UK/EU Origin

Positek Vietnam – Positek-Vietnam – Positek Vietnam – Positek-Sensor for gas Vietnam – jpro2

Model: Positek X111.600AI1000NSUZ375 Sensor for gas

Positek Intrinsically Safe ATEX/IECEx (Ex ia )certified LIPS® Sensor for gas/vapour atmospheres



1.2 100% UK/EU Origin

PositekVietnam – Positek Viet Nam – Positek Vietnam – Positek Sensor for gas Vietnam – jpot24

Positek Model: X111.600AI1000NSUZ375 Sensor for gas Positek

Positek Intrinsically Safe ATEX/IECEx (Ex ia )certified LIPS® Sensor for gas/vapour atmospheres



 jpro 1 100% Switzerlamd Origin

Tantronic VietNam

Model: 20-12-35000-A

Tangasflow 2026net 0-100% LEL

Analyser for the measurement of explosive gas with an integrated pump. Indication of the gas concentration and the alarm status.

The activation of the integrated solenoid valve block for the automatic zero point and/or sensitivity calibration. The system can be adapted to all customized requirements simply with the password protected menu structure. The configuration of the alarm organization is very simply realized with the integrated alarm matrix. Compared to the Tangasflow 2016net, these status messages are also shown on the Tangasflow 2026net by means of a colored display backlighting. The device status is thus even more clearly and quickly visible. The new display has a higher resolution which is improving its readability.

Technical data

Type of device: TangasFlow 2026net

Power input: 24VDC Max.

Consumption: 20W

Temperature range: 0°C to +50°C (short-term 60°C)

Relative humidity: <99% RH, non-condensing

Tantronic Interface: 1x 14 Pin round connector Contains analog and digital outputs Contains power supply lines

– Analog output: 1x Analogue output (optionally up to 250 Ohm)

4-20mA for the measurement value 2.5mA to indicate the calibration

process

 – Digital output: 1x 3 Logic signal for alarm 1-3 1x Logic signal for calibration status 1x Logic signal for warning 1x Logic signal for fault

Ethernet Interface: 1x 10/100Mbit/s, RJ-45

Measuring sample input: Bulkhead connection, 6mm / Serto-Fitting, 4mm

Measuring sample output: Bulkhead connection, 6mm

Zero input: Bulkhead connection, 6mm / Serto-Fitting, 4mm

Span input: Bulkhead connection, 6mm / Serto-Fitting, 4mm

Data recorder: For max. 4000 events

Temperature recorder: For max. 4000 events (1x per 2h)

Display: 160 x 104 Pixel Colored RGB LED backlight to display alarms and warnings

Sensor

NDIR-sensor Nondispersive infrared sensor

– Type of gas: Methane CH4

– Measuring range: 0-100% LEL

– T90 response time: <10s (CH4)

– Accuracy: ±2% FS (Full Scale)

– Stability: ±2% / Year

– Zero-drift: ±2% / Year (daily Auto-Zero calibration)

– Warm-up time: 30min

Enclosure

Housing type Aluminium housing Colour Powder-coated RAL 7035 / 5002 Type of protection IP65



Batbuoc

1.1 100% Switzerlamd Origin

Tantronic VietNam

Model: 80-12-34540-A

Programming TangasFlow 2026net Sensor 1 KKS CYQ01CQ212 (0-100% V3.23)



2 100% Switzerlamd Origin

Tantronic VietNam

Model: 20-10-35200-A

*note: replace for 00-92-35200-A

Analys 2026net

Analyser with up to 16 measuring points for the measurement of toxic or explosive gas or oxygen with a pump-bypass system.

Indication of the gas concentration and the alarm status. To actuate the pre suction pump block. To actuate the solenoid valve block with separately pre suck and sample drawing. The system can be adapted to all customized requirements, simply with the password protected menu structure. The configuration of the alarm organization is very simply realized with the integrated alarm matrix.

Compared to the Analys 2016net, these status messages are also shown on the Analys 2026net by means of a colored display backlighting. The device status is thus even more clearly and quickly visible. The new display has a higher resolution which is improving its readability.

Technical Data

Type of device: Analys 2026net

Power input: 24VDC

Max. Consumption: 15W

Temperature range: 0°C to +50°C (short-term 60°C)

Relative humidity: <99% RH, non-condensing

Tantronic Interface: 2x D-Sub 37 Contains analog and digital in- and

outputs

– Analog output: 1x Analog output, one for each connected measuring device (optionally up to 250 Ohm): 4-20mA for the measurement value

– Digital output: 3x 3 Logic signal for alarm 1-3 16x Logic signal for the solenoid

valve block

x Logic signal for the pre-suction

pump block

1x Logic signal for calibration status 1x Logic signal for warning 1x Logic signal for fault

Ethernet Interface: 1x 10/100Mbit/s, RJ-45 Serial Interface: 1x RS-232, D-Sub 9

Measuring sample input: Bulkhead connection, 6mm

Measuring sample output: Bulkhead connection, 6mm

Data recorder: For max. 4000 events

Temperature recorder: For max. 4000 events (1x per 2h)

Display: 160 x 104 Pixel Colored RGB LED backlight to display alarms and warnings

Sensor

NDIR-sensor: Nondispersive infrared sensor

– Type of gas: Methane CH4

– Measuring range: 0-100% LEL – T90 response time: <10s (CH4)

– Accuracy: ±2% FS (Full Scale) – Stability: ±2% / Year – Zero-drift: ±2% / Year (daily Auto-Zero calibration)

– Warm-up time: 30min

Enclosure

Housing type: 19“ Rack version Painting: Aluminium blank Type of protection: IP20



Batbuoc

2.1 100% Switzerlamd Origin

Tantronic VietNam

Model: 80-10-34513-A

Programming Analys 2026net with 12MP CYQ01CQ211 (V3.23)



3 100% Switzerlamd Origin

Tantronic VietNam

Model: 20-14-35100-A

Tanguard 2026net

Tanguard 2026net is the modern microprocessor based gas warning device to monitoring and alerting of toxic and explosive gases and steams for up to eight measuring points into compact 19” inch rack. The system can be adapted to all customized requirements simply with the password protected menu structure.

The attitudes for the attached gas transmitters are made with the internal keyboard. The configuration of the alarm organization is very simply realized with the integrated alarm matrix.

Compared to the Tanguard 2016net, these status messages are also shown on the Tanguard 2026net by means of a colored display backlighting. The device status is thus even more clearly and quickly visible. The new display has a higher resolution which is improving its readability.

Technical data

Type of device: Tanguard 2026net

Power input: 24VDC

Max. Consumption: 12W

Temperature range: 0°C to +50°C (short-term 60°C)

Relative humidity: <99% RH, non-condensing

Tantronic Interface: 2x D-Sub 37 Contains analog and digital in- and

outputs

– Analog input: 8x Analog input, one for each connected measuring device (optionally up to 250 Ohm): 4-20mA for the measurement value 2.5mA to indicate the calibration

process

 – Analog output 8x Analog output, one for each connected measuring device 4-20mA for the measurement value (optionally up to 250 Ohm)

– Digital input 8x Logic signal for flow fault, one for each connected measuring device

– Digital output 8x 3 Logic signal for alarm 1-3 1x Logic signal for calibration status 1x Logic signal for warning 1x Logic signal for fault Ethernet Interface: 1x 10/100Mbit/s, RJ-45

Serial Interface: 1x RS-232, D-Sub 9

Data recorder: For max. 4000 events

Temperature recorder: For max. 4000 events (1x per 2h)

Display: 160 x 104 Pixel Colored RGB LED backlight to display alarms and warnings

Enclosure

Housing type: 19“ Rack version Painting: Aluminium blank Type of protection: IP20



Batbuoc

3.1 100% Switzerlamd Origin

Tantronic VietNam

Model: 80-14-34512-A

Programming Tanguard 2026net 1 GT13E2 KKS CYQ01CQ218 (V3.23)

Sensor 1 ExHaust Air Duct S1 KKS CYQ01CQ212 (0-100% LEL, A.L1-3 6/10/15% LEL)

Sensor 2 Ignitiongas Sensor KKS CYQ01CQ281 (0-100% LEL, A.L1 20% LEL)

Sensor 4 Power Supply 1 (24V DC)



4 100% Switzerlamd Origin

Tantronic VietNam

Model: 00-92-35311-B

Filter Element Polyglas-R small size (Set of 6 pcs.)

Important Notice: Item 00-92-35311-A is replaced withitem 00-92-35311-B and it is 100% compatible. Item 00-92-35311-B is the new revision and it is much better than revision A with much more filter area and can be used in both ways (input and output).
